Some years ago (1992) when experimenting with S-band antennas I threw together a simple 2 turn helix dish feed in a couple of hours, well aware that this solution could be improved upon. It had always been my intention to 'productionise' a version of this for use with the AO-40 and other amateur radio satellites. [2019 - for example the Es-hail-2 QO-100 geostationary satellite].
Experiments with an alternative feed based on the 'patch' principle showed it to be a better option both electrically and mechanically. Freddy de Guchteneire ON6UG used his formidable microwave antenna design skills to develop the feed electrically; then it was refined jointly with James Miller G3RUH who undertook production, manufacture and distribution. Together we offer you this ready-to-use design.
Description
This feed is a patch antenna for 2.4 GHz intended for use with a parabolic reflector dish. It is supplied fully assembled and tested.
[Note: downconverter not included!]
When installed in an f/d 0.35 60cm dish for example, the ideal beam pattern of this feed results in a G/T typically 1-2 dB better than with the small helix often used for this application, and the axial ratio is almost perfect. The recommended f/d ratio for a dish using this feed is 0.3 to 0.5, the smaller values giving lowest noise reception (highest G/T), but the higher values a little more gain. SWR is better than 1.2:1 across 2.3 - 2.4 GHz. Any size dish may be used!
To realise the performance offered by today's lowest noise converters, you need a feed and dish system that together contribute less noise than the converter. This feed achieves that.
Feed polar plot:
The feed has LHCP (left hand circular polarisation) so that when installed in a dish the resulting polarisation is RHCP, as used by Amsat spacecraft. The feed may be used for transmission (150W) or reception.
An N-male connector is used for direct coupling to typical S-band converters. The alternative N-female connector version can be supplied at no extra charge.
Mounting is via legs (not supplied) to three M5 (3/16") holes in the feed. The feed is weather-proofed to keep out direct rain, and is ventilated to prevent internal moisture build-up. All component parts are non-rusting.
The input is DC grounded; static charge cannot build up to damage converters.
Remember, the feed is an antenna in its own right, and can be used independently where a wide-beamed low gain system is needed.
The patch has been tested as a transmit antenna up to 150W - the limit of the PA used. [ Anyone successfully exceeding this, please let me know ].

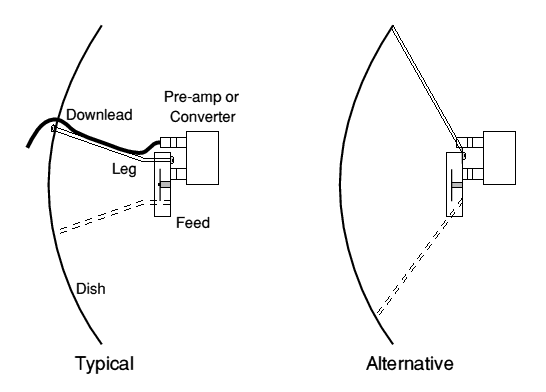

Typical dish installation:
Summary
Frequency 2250-2450 MHz Gain 8.5 dBic -3dB beamwidth 85° -10 dB beamwidth 125° SWR < 1.2:1 Axial ratio 1.05:1 Feed polarisation LHCP [Option: RHCP] Suitable dish f/d 0.3 to 0.5 Power handling 150 watt Connector N-male [Option: N-female] Impedance 50 ohm Overall diameter 120 mm Depth 17 mm excl. connector Weight 130 gram
Feedback from users.
Photos of users' systems.
Stock, as of date below, is:
LHCP no stock.
RHCP no stock.
Production of this item has ended.
Some statistics
Qty. 607 patch antennas were manufactured.
The first was shipped on 2001-Aug-06 and the last on 2026-Oct-23.
Of these qty. 20 were RHCP; all others LHCP.
Qty. 61 were shipped with an N-female connector; qty. 546 with the 'default' N-male.
Qty. 292 were shipped with a 60cm diameter dish.
84% were delivered to radio amateurs in 32 countries, the remainder to space industry, universities and radio astronomers world wide.
Thank you everybody for your fantastic support of this project!
